Associated Pile

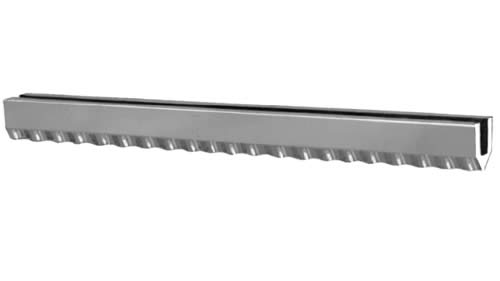

30" Straight Bar Sheet Pile Protector

  • Model: X-09800

The 30" cast steel straight bar is designed to be cut into appropriate lengths to cover the sheet pile web and flanges. The protector will reinforce the end of the pile for optimum penetration into any soil, but is especially beneficial when obstructions are anticipated. It also opens a slightly larger hole to speed installation and preserve coatings. Used for sheet pile web and/or flanges with thickness of ½" or less. Some sheet pile sections may require a combination of both the 30" X09800 and the 28" X09828 to cover the web and flanges. APF can assist on requirements for your particular sheet pile.

Size:
Benefits: Value of the protectors has been proven by piles pulled for reuse after being driven. They attach with a minimum of weld and protect the pile ends to prevent tearing and buckling of piles.
Steel Grade: High Strength Heat-Treated Cast Steel Grade ASTM A148 90/60.

Download Data Sheet

28" Straight Bar Sheet Pile Protector

  • Model: X09828

The 28" cast steel straight bar is designed to be cut into appropriate lengths to cover the sheet pile web and flanges. The protector will reinforce the end of the pile for optimum penetration into any soil, but is especially beneficial when obstructions are anticipated. It also opens a slightly larger hole to speed installation and preserve coatings. Used for sheet pile web and/or flanges with thickness greater than ½". Some sheet pile sections may require a combination of both the 28" Model X09828 and 30" Model X09800 to cover the web and flanges. APF can assist on requirements for your particular sheet pile.

Size:
Benefits: Value of the protectors has been proven by piles pulled for reuse after being driven. They attach with a minimum of weld and protect the pile ends to prevent tearing and buckling of piles.
Steel Grade: High Strength Heat-Treated Cast Steel Grade ASTM A148 90/60.

Download Datasheet

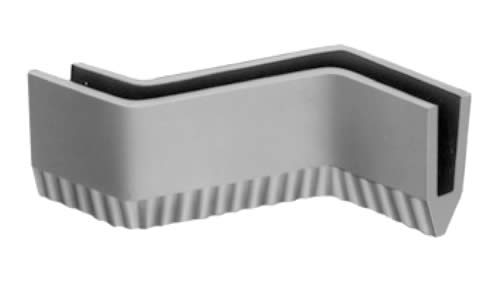

One Piece Sheet Pile Protector

  • Model: X9-NZ-19-21

The one piece sheet pile protector NZ19/21 sheet piles. These protectors are made in the Z configuration for these particular sheets and are made to fit the pair in a left and right section. It opens a slightly larger hole to speed installation and preserve coatings.

Size:
Benefits:  Value of the Protectors has been proven by piles pulled for reuse after being driven. They attach with a minimum of weld and protect pile ends to prevent tearing and buckling of piles.
Steel Grade: Heat-Treated High Strength ASTM A148 90/60.

Download Data Sheet

One Piece Sheet Pile Protector

  • Model: X9-PZC-18

The one piece sheet pile protector for the PZC18 sheet piles. These protectors are made in the Z configuration for these particular sheets and are made to fit the pair in a left and right section. It opens a slightly larger hole to speed installation and preserve coatings.

Size:
Benefits:  Value of the Protectors has been proven by piles pulled for reuse after being driven. They attach with a minimum of weld and protect pile ends to prevent tearing and buckling of piles.
Steel Grade: Heat-Treated High Strength ASTM A148 90/60.

Download Data Sheet

One Piece Sheet Pile Protector

  • Model: SP-PZ-27

The one piece sheet pile protector for the PZ27 sheet pile. These protectors are made in the Z configuration for these particular sheets and are made to fit the pair in a left and right section. It opens a slightly larger hole to speed installation and preserve coatings.

Size:
Benefits:  Value of the Protectors has been proven by piles pulled for reuse after being driven. They attach with a minimum of weld and protect pile ends to prevent tearing and buckling of piles.
Steel Grade: Heat-Treated High Strength ASTM A148 90/60.

Download Data Sheet

One Piece Sheet Pile Protector

  • Models: X9PZ40, X9PZC13

The one piece sheet pile protector is also available for the PZ40 and PZC13 sheet piles. These protectors are made in the Z configuration for these particular sheets and are made to fit the pair in a left and right section. It opens a slightly larger hole to speed installation and preserve coatings.

Size:
Benefits:  Value of the Protectors has been proven by piles pulled for reuse after being driven. They attach with a minimum of weld and protect pile ends to prevent tearing and buckling of piles.
Steel Grade: Heat-Treated High Strength ASTM A148 90/60.

Download General Brochure

Sheet Pile Splicer

  • Model: Z30000

Provides a safe, strong and efficient splice for Z shaped sheet piles. The splicer is a custom splice fabricated for the intended Z shape.

Size:
Benefits: Minimum preparation is required on the sheet pile. Nut and bolt assembly allows for quick, easy alignment and weld attachment. Saves time and money versus full penetration welds.
Steel Grade: A572 GR50 or special grades

Download General Brochure

APF Jet Filter

  • Product Name: APF Jet Filters
  • Product Description/Purpose: The APF jet filter is a weep hole filtration system used to relieve water pressure in earth retaining structures. Available in both black powder coated and stainless steel in sizes 2.5", 4" or 6" diameter. The 4" design is also available with a one-way check valve.
  • Benefits: Recommended dewatering solutions that relieves hydrostatic pressure used to extend the life-span of a wall design. Easy maintenance from the wall face. Helps prevent erosion and wall failure.
  • Steel Grade: ASTM A36 Powder Coated or Stainless Steel.

2.5" Drawing  |  4" Drawing

Download Installation Guide

SKP Sheet Pile Connector

  • Model: SKP

Engineered shapes that provide a full range of corner and junction connections for ball and socket interlock sheet pile. The connector is threaded or welded onto the sheet pile. The SKP is available in several multi-functional designs; SKP90, SKP45, SKPT, SKPF, SKPM.

Size:
Benefits: Cost effective and efficient way to transition the orientation of the sheet pile wall as compared to fabrication. SKP connectors are available from stock.
Steel Grade: ASTM A572 Gr60 Domestic or Foreign grade. Special grades upon request.

Download Data Sheet

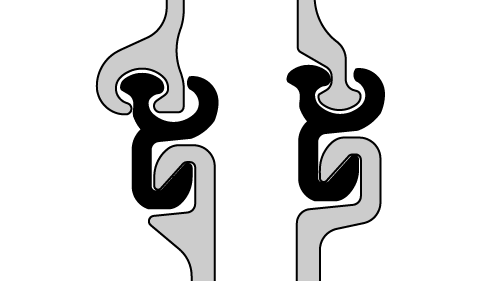

SKAP Sheet Pile Connector

  • Model: SKAP

Engineered shape that provides a transition from a Ball & Socket to Larssen interlock sheet pile. The connector is threaded into the sheet pile.

Size:
Benefits: Cost effective and efficient way to transition the orientation of the sheet pile wall as compared to fabrication. SKAP connectors are available from stock.
Steel Grade: ASTM A572 Gr 60 Domestic or Foreign grade. Special grades upon request.

Download Data Sheet

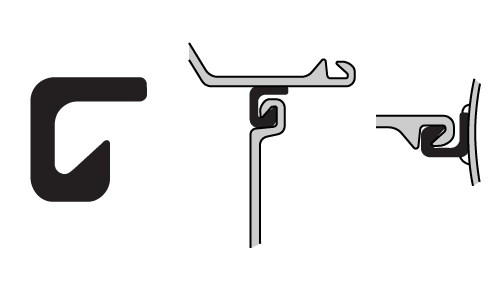

E-22 Sheet Pile Connector

Engineered shape that provides a weld on connection for Larssen interlock sheet pile. The connector is welded onto the pile.

Size:
Benefits: Cost effective and efficient way to provide a weld on transition for combined wall systems as compared to fabrication. E-22 connectors are available from stock.
Steel Grade: ASTM A572 Gr. 60 Domestic or Foreign grade. Special grades upon request.

Download Data Sheet

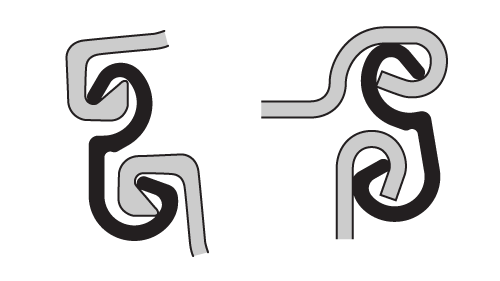

SKLC-90 Sheet Pile Connector

  • Model: SKLC-90

Engineered shape that provides junction connections for Larssen and most cold form interlock sheet pile. The connector is threaded into the sheet pile.

Size:
Benefits: Cost effective and efficient way to transition the orientation of the sheet pile wall as compared to fabrication. SKLC-90 connectors are available from stock.
Steel Grade: ASTM A572 Gr. 60 Domestic or Foreign grade. Special grades upon request.

Download Data Sheet

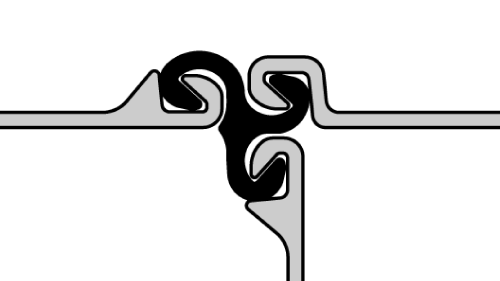

Larssen T Sheet Pile Connector

  • Model: Larssen T

Engineered shape that provides a "T" connection for most Larssen interlock piles.

Size:
Benefits: Cost effective and efficient way to provide a weld on transition for combined wall systems as compared to fabrication. Larssen T connectors are available from stock.
Steel Grade: ASTM A572 Gr. 60 Domestic or Foreign grade. Special grades upon request.

Download Data Sheet
