SKP Sheet Pile Connector

  • Model: SKP

Engineered shapes that provide a full range of corner and junction connections for ball and socket interlock sheet pile. The connector is threaded or welded onto the sheet pile. The SKP is available in several multi-functional designs; SKP90, SKP45, SKPT, SKPF, SKPM.

Size:
Benefits: Cost effective and efficient way to transition the orientation of the sheet pile wall as compared to fabrication. SKP connectors are available from stock.
Steel Grade: ASTM A572 Gr60 Domestic or Foreign grade. Special grades upon request.

Download Datasheet

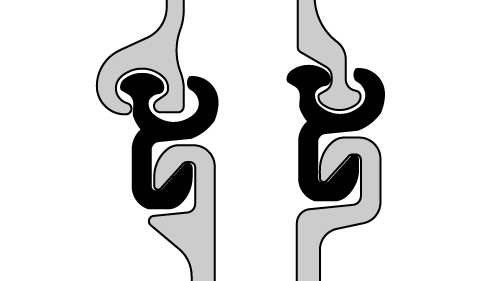

SKAP Sheet Pile Connector

  • Model: SKAP

Engineered shape that provides a transition from a Ball & Socket to Larssen interlock sheet pile. The connector is threaded into the sheet pile.

Size:
Benefits: Cost effective and efficient way to transition the orientation of the sheet pile wall as compared to fabrication. SKAP connectors are available from stock.
Steel Grade: ASTM A572 Gr 60 Domestic or Foreign grade. Special grades upon request.

Download Datasheet

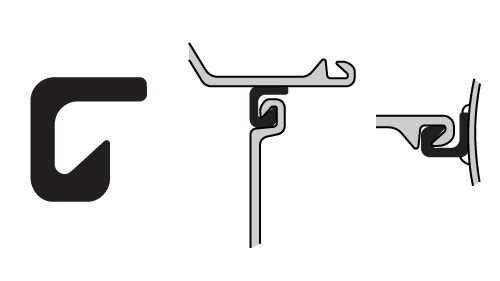

E-22 Sheet Pile Connectors

  • Model: E-22

Engineered shape that provides a weld on connection for Larssen interlock sheet pile. The connector is welded onto the pile.

Size:
Benefits: Cost effective and efficient way to provide a weld on transition for combined wall systems as compared to fabrication. E-22 connectors are available from stock.
Steel Grade: ASTM A572 Gr. 60 Domestic or Foreign grade. Special grades upon request.

Download Datasheet

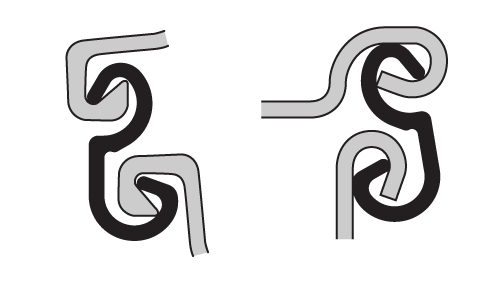

SKLC-90 Sheet Pile Connector

  • Model: SKLC-90

Engineered shape that provides junction connections for Larssen and most cold form interlock sheet pile. The connector is threaded into the sheet pile.

Size:
Benefits: Cost effective and efficient way to transition the orientation of the sheet pile wall as compared to fabrication. SKLC-90 connectors are available from stock.
Steel Grade: ASTM A572 Gr. 60 Domestic or Foreign grade. Special grades upon request.

Download Datasheet

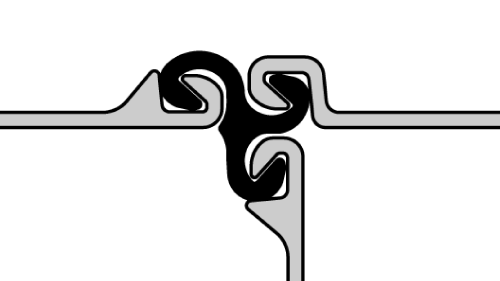

Larssen T Sheet Pile Connector

  • Model: Larssen T

Engineered shape that provides a "T" connection for most Larssen interlock piles.

Size:
Benefits: Cost effective and efficient way to provide a weld on transition for combined wall systems as compared to fabrication. Larssen T connectors are available from stock.
Steel Grade: ASTM A572 Gr. 50 Domestic or Foreign grade. Special grades upon request.

Download Datasheet
